Heeley Bypass

Introduction ::
The Heeley Bypass is a generic name for a route that would have linked the central city centre area to both the inner ring road and the A61 south of the city centre. It is unclear at this stage as to the ultimate classification, but from the designs that I have seen the route outlined below would probably have been a dual carriageway. Dates of the proposals are unclear and I would appreciate any further assistance on dating the various route options.

:: The Heeley Bypass in Context

City Centre to St Mary's Gate ::
From the north, starting in the City Centre, the route would have linked to the central ring road at what is now known as Charter Square. Travelling south along Eyre Street, the first major intersection is with the inner ring road, where it meets Bramall Lane. In the 1960/1970's this junction was planned as grade separated, with the Inner Ring Road passing over the Bramall Lane Roundabout as a dual carriageway and the Heeley Bypass route meeting at grade with the roundabout as it is today.

St Mary's Gate to Asline Road ::

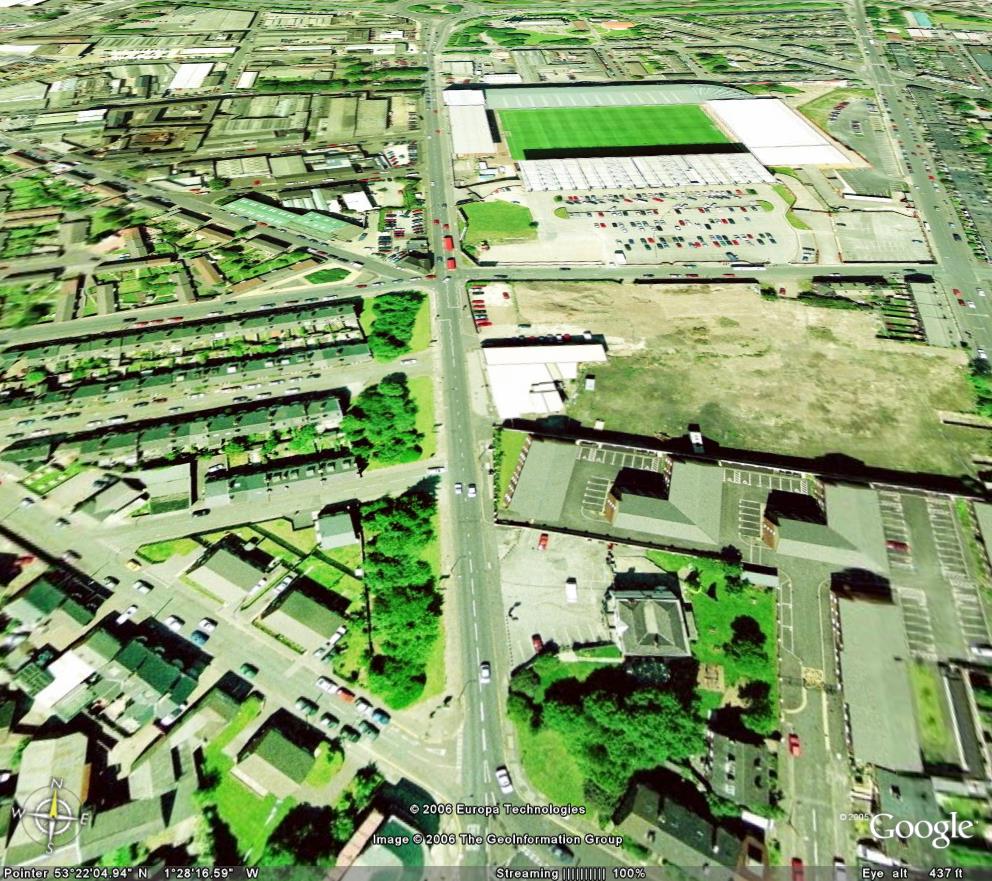

Continuing south, there is evidence that Clough Road would have pass either under or over the route, although it is unclear as to why this would be. Bramall Lane currently gives clues to a greater planned past, with the housing and businesses to the west of Bramall Lane :: Here :: cleared in preparation for the route. Bramall Lane was until the mid 1990's had a protected line placed on the western side to allow for future widening, this is currently protected to allow the future widening to 3 lanes, i.e. a single carriageway, with an inbound bus lane. Notably, the two public houses on Bramall Lane, survived demolition

Asline Road to Myrtle Bridge ::

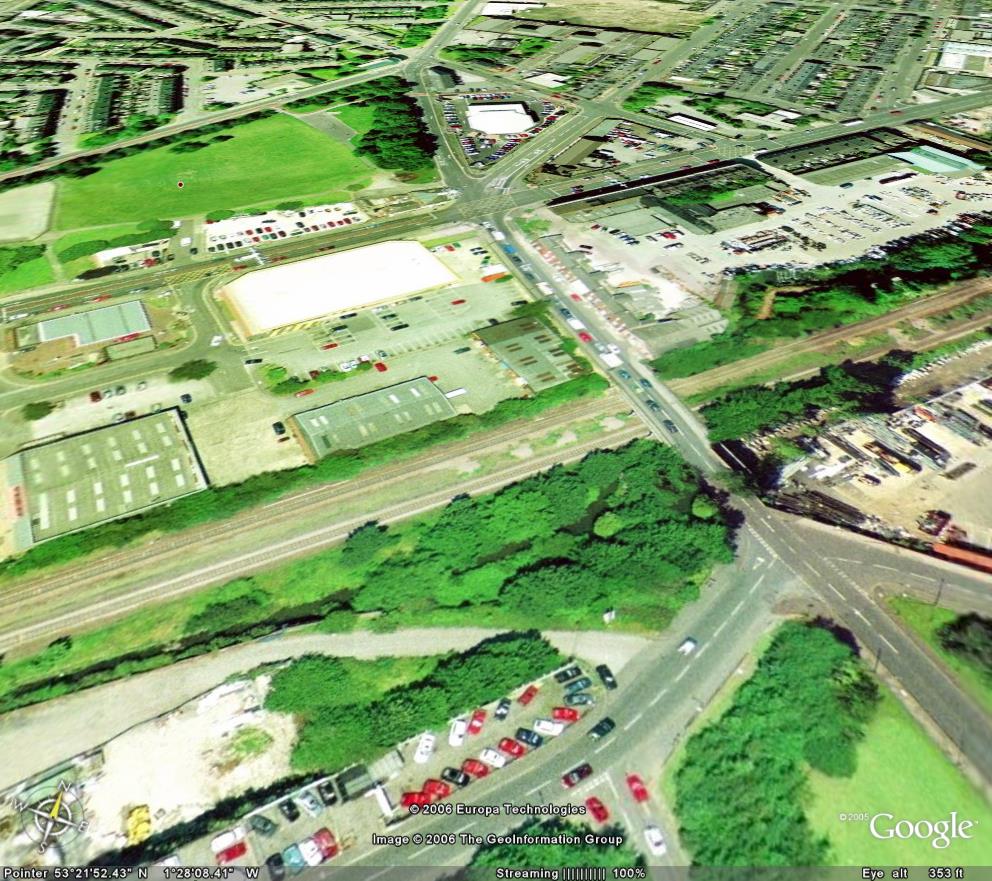

Further south, the next major junction would have been with Asline Road, although it is very likely that this would have been part of a larger junction with Queens Road. The junction with Queens Road has been proposed both as a major grade separated intersection and later as a roundabout. Again the current street scene gives signs to the buildings that were cleared in preparation of the scheme :: Here :: although some of the cleared areas have now been rebuilt upon, notably the large rectangular building as a retail warehouse and the octagonal building as a car dealership. Again, the public house on the corner of Queens Road and Myrtle Road survived demolition.

Queens Road is worthy of mention at this point, as there are indications that this corridor could have been proposed as urban motorway, I certainly recall seeing old plans that showed a fully grade separated intersection here and the Sheffield Urban Motorway plans, hint at Queens Road having hard shoulders and continuing from the north-south urban motorway to the rear of the Midland Railway Station. So the questions are, where exactly did the planned north-south urban motorway end in the south ? Was Queens Road a motorway where it met Bramall Lane ? Could the urban motorway have turned to follow the route of the Heeley Bypass or did it simply continue south towards Abbeydale Road ? and where exactly are the 39 steps ! :¬)

Heeley Park ::

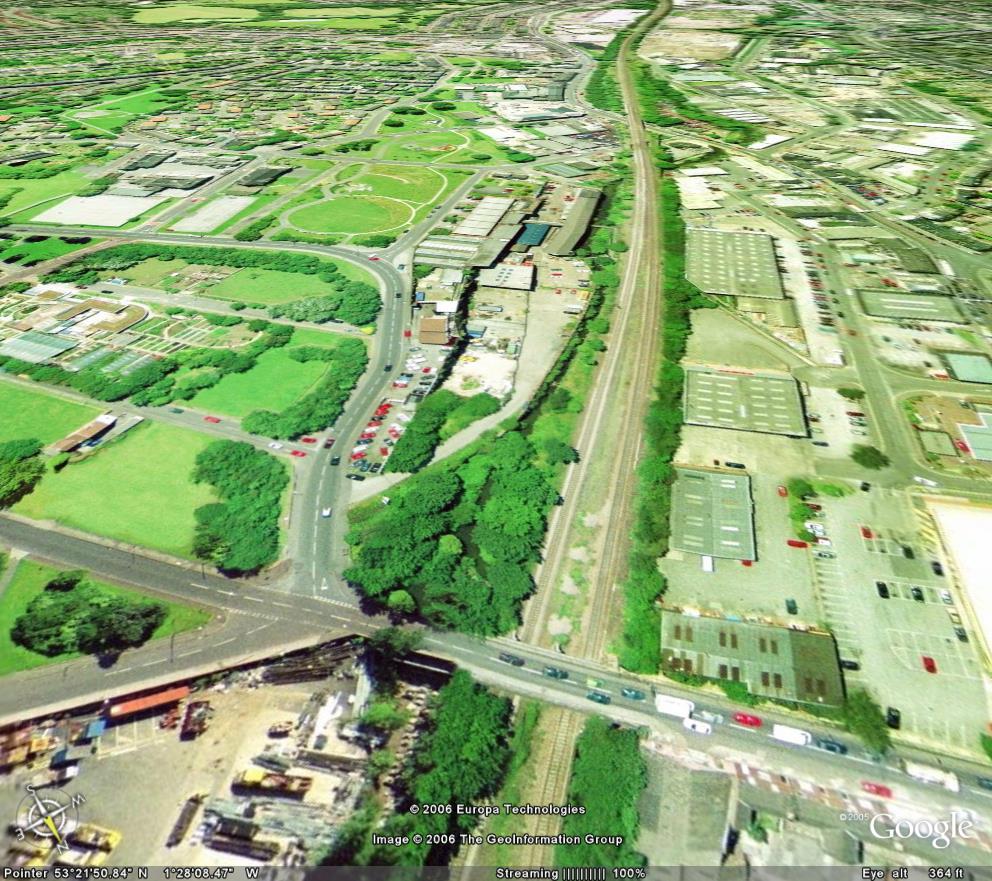

The southern most part of the route, again was practically cleared of all housing and businesses shown :: Here :: looking towards the south. Again, the corridor was redeveloped in the 1980's after the scheme had been shelved, with a new urban farm, green parks and children's play areas. The route would have crossed the GNER railway line adjacent to Myrtle Road Bridge, turning south to follow what is now known as Heeley Farm, continuing south parallel to Chesterfield Road, before turning west to join Chesterfield Road somewhere between Thirlwell Road and Valley Road.

Further South ::
There seems to be some logic that ending the Heeley Bypass at Chesterfield Road, would have been a strange place to end such a major route. It's fair to say that the route could have been extended further south, running parallel to the railway before turning south to join back with the A61 somewhere south of Woodseats. Looking at the aerial photography, suggests possible route, but I'll look into that in a future feature. Needless to say, both the A61 and A57 in Sheffield where historically trunk roads, that never really joined with a quality link - Time to go digging in the archives !
